Insertion Dryer

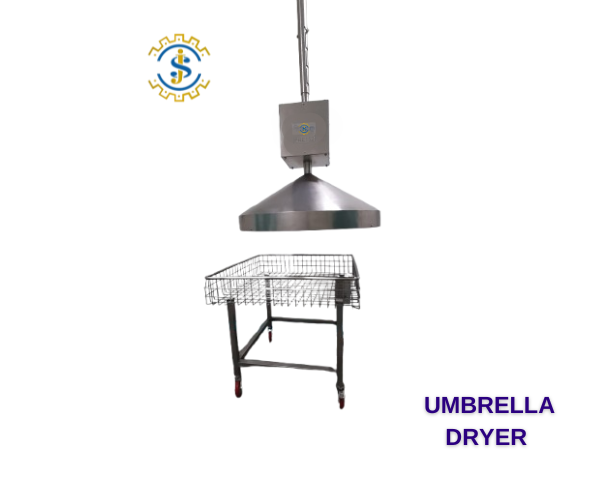

Umbrella Dryer

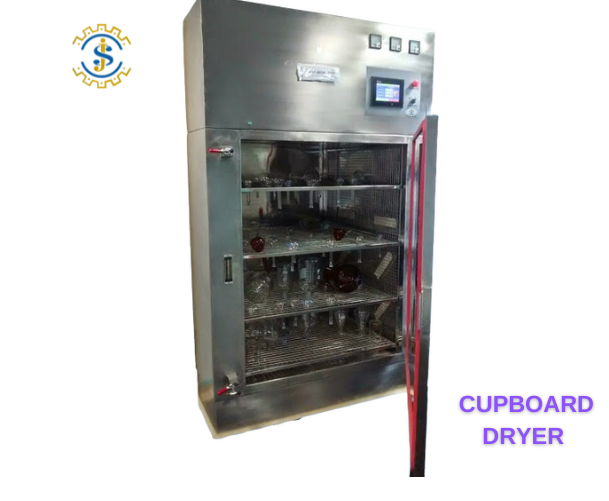

Cupboard Dryer
Infrared ray dryer is used for speedy drying of washed equipment by just exposing under dryers.
R Rays are not harmful, safe to human body. No increase in temperature of the surrounding atmosphere, since rays gives heating effect only to the object on which it falls. These rays do not require air as a media, still blower is provided to cool down heated items.
IR elements are ceramic coated thus ensure no particle shedding or black particle generation, which may contaminate washed equipment.
The IR Dryer reduce the microbial counts. IR Dryer are more effective for drying stainless steel equipment because stainless steel surface is reflective surface.
Skyline provides several options that can be supplied with fluid bed dryer If opted such as Inflatable tubes, PLC automation control, AC Variator for blower, WIP CIP system, pneumatic damper on ducts, police filter, Scrubber on discharge, steam fittings if steam heater, electrical heater, chilling coil, solid flow monitors, Top spray arrangement with holding tank and peristaltic pump, EX rated FLP construction etc.
Fluidized Bed Dryer works on a principle of fluidization of the feed materials.
In fluidization process, hot air is introduced at high pressure through a perforated bed of moist solid particulate.
The wet solids are lifted from the bottom and suspended in a stream of air (fluidized state).
The hot gas Surrounding every granule to completely dry them. Thus, materials or granules are uniformly dried.
Variable capacity (5l to 1200l)
Scalability
Improved design for higher efficiency
FBE & FBP models
Conidur sieves for better air flow and better drying
Top & bottom spray options
Stand alone and continuous options
Containment system for ONCO, OEL & hormonal drug
21 CFR compliance automation
Octagonal blender, also known as an octagonal mixer or octagonal drum mixer, is a type of industrial blender used for mixing and blending of dry Powers, granules, and other solid materials.
In conventional type blenders, the charging & discharging used to be very time- consuming causing a lot of dust generation in the process.
In Conta Blender, the Power or granules are transferred through a dust-tight duct into the container or bin through an openable manhole on top.
The Bin is then loaded in the Cage and rotated at 5-20 rpm through a Variable frequency drive.
After blending the Bin is removed from the cage through the trolley and the cage is loaded with another Bin.
Octagonal blender, also known as an octagonal mixer or octagonal drum mixer, is a type of industrial blender used for mixing and blending of dry Powers, granules, and other solid materials.
In conventional type blenders, the charging & discharging used to be very time- consuming causing a lot of dust generation in the process.
In Conta Blender, the Power or granules are transferred through a dust-tight duct into the container or bin through an openable manhole on top.
The Bin is then loaded in the Cage and rotated at 5-20 rpm through a Variable frequency drive.
After blending the Bin is removed from the cage through the trolley and the cage is loaded with another Bin.
The Tray Dryer, a powder drying machine, is utilized for drying a wide range of powders in pharmaceuticals. Besides its common application in pharmaceutical equipment, it finds usage in herbal, nutraceuticals, ayurvedic, cosmetic, and chemical industries. Powder drying is achieved through hot air provided by the inbuilt blower. The air is heated by heaters installed on the side walls of the equipment, reaching temperatures around 80 degrees Celsius to dry the product placed on trays. Known for its uniform heating throughout the process, this equipment performs exceptionally well across various powder types. The major advantage of the pharmaceutical powder dryer is its equal heat distribution, minimizing changes to the product characteristics during the process. Given the vast number of chemicals, food products, and raw materials used in medicine production that are preserved in powder form, this herbal powder dryer proves to be highly effective and environmentally friendly.
In conventional type blenders, the charging & discharging used to be very time- consuming causing a lot of dust generation in the process.
Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process.
Stainless steel trays are placed on the movable trolleys.
Electric, steam, thermic fluid heating.
Air filter at inlet (Hepa filter can be provided).
The exhaust duct, blower & air inlet filters can be custom built to keep out of the production area with suitable ducting.
